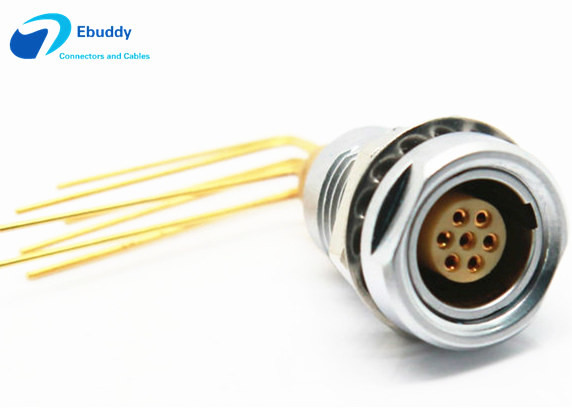

Circular Lemo Cable Connector Multicore Push Pull Connector 7 Pins Female Socket

Product Categories

Ebuddy Technology Co.,Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : OEM

Model Number : ECG.0B.305CLV

Certification : CE,ROHS

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : Western Union, MoneyGram, T/T,Paypal

Supply Ability : 50000pcs per month

Delivery Time : 3-10 working days

Packaging Details : PP bag

Material : Brass with nickel plated

Application : PCB

Insulator : PPS

Multi-pole : 7 Pins

Certificates : CE, RoHS

Shell size : 0B

Contact Now

Lemo circular multicore push pull connector 7 pins male female socket

Description:

Series B metal circular connectors in many size and outer diameter for different applications are designed to be compatible with connector Series B which with a self-latching system for easy operations.

Our high quality connectors are found in a variety of challenging applications and environments including:Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines,Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Module Power, Sensor,Sensor Systems Instrumentation, Analysis Application.

Specifications:

1.Shell size	00 to size 3(#00,#0,#1,#2,#3)
2. Multi-pole types	2 to 32 contacts
3. Security	push-pull self-latching system
4.contacts (straight or elbow)	Solder ,print
5.Packing	High packing density for space saving
7.Key options	0°,30°,45°,60°
8. Male contacts and female contacts	brass with gold-plated surface
9. Out shells	brass with chrome nickel-plated surface
10. Insulator	PPS
11.Screening	360 angle screening for full EMC shielding.

About our Cable & Connectors:

LEMO substitute B-series connector, cable to cable connector, free socket ,inline connector.
Can be 100% compatible with original LEMO connector.
Can be wth different degree , such us 30, 45, 60, 90, 135....
Can plated with white or black chrome.
Meet ROHS standard and 360 angle screening for full EMC shielding.

Size and Drawing:

Circular Lemo Cable Connector Multicore Push Pull Connector 7 Pins Female Socket
